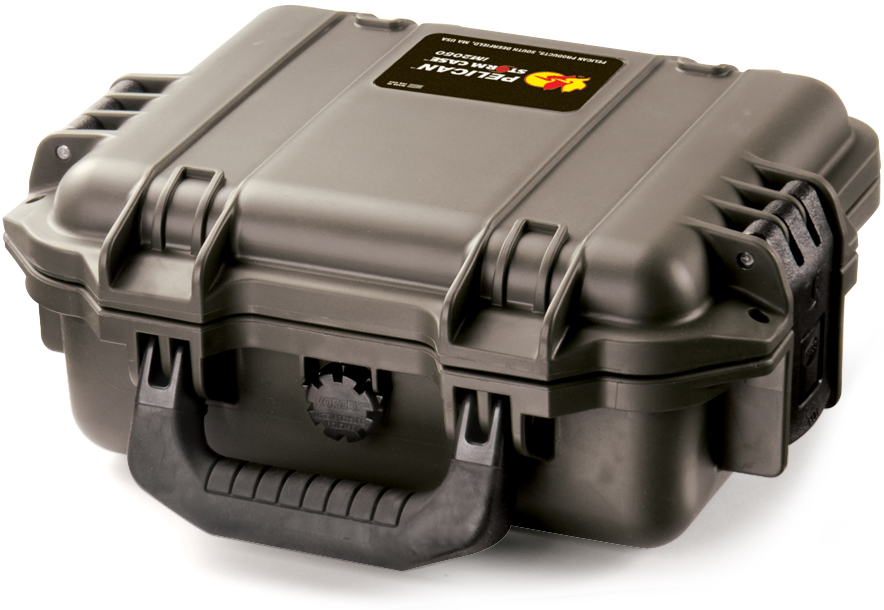

iM2050 Storm Case
Price range: RM1.00 through RM2,050.00
11.8″ x 9.8″ x 4.7″ (30 x 24.9 x 11.9 cm)
Description
WATERTIGHT, CRUSHPROOF, AND DUST PROOF
- Easy open Press and Pull Latches
- Resilient HPX™ High Impact Shell
- O-ring seal
- Vortex™ Valve – Automatically adjusts air pressure without letting in water
- Double Layered, Soft-Grip Handles
- Molded in Hasps – Unbreakable molded in hasps, allow you to add padlocks for added security
- Watertight
- Pelican’s Lifetime Guarantee of Excellence.
BODY: HPX™
FOAM: 1.6pcf Polyester
LATCH: Valox – PBT polybutylene terephthalate
PURGE BODY: Valox – PBT polybutylene terephthalate
LID O-RING: Silicone Sponge
PURGE VENT: Gortex Membrane
PINS: Stainless Steel or Aluminum
PURGE O-RING: Buna-N, 50-60 Durometer Shore A
SPECIFICATIONS
INTERIOR (L x W x D)
9.5″ x 7.5″ x 4.25″ (24.1 x 19 x 10.8 cm)
EXTERIOR (L x W x D)
11.8″ x 9.8″ x 4.7″ (30 x 24.9 x 11.9 cm)
INTERIOR CUBIC VOLUME:
0.18 cubic feet (4.96 cubic decimeter)
LID DEPTH:
1.5″ (3.8 cm)
BOTTOM DEPTH:
2.75″ (7 cm)
TOTAL DEPTH:
4.25″ (10.8 cm)
WEIGHT WITH FOAM:
3 lbs (1.36 kg)
WEIGHT W/O FOAM:
2.7 lbs (1.22 kg)
BUOYANCY:
11.1 lbs (5.03 kg)
RANGE TEMPERATURE
-20 / 140° F (-29 / 60° C)
FOAM PROPERTIES
Lid Layer 1
1.12″ (2.8 cm) Convolute
MOBILITY OPTIONS
None
CERTIFICATES
• ATA 300
COLORS
CONFIGURATIONS
| Cat. # | Description |
|---|---|
| iM2050 | iM2050 Case with Foam |
| iM2050NF | iM2050 Case (No foam) |
| iM2050-DIV | iM2050 Case with Padded Dividers |
NSN #8145-01-540-4438 – Storm Case iM2050, Olive Drab, Empty
NSN #8145-01-540-4439 – Storm Case iM2050, OD, Cubed Foam
NSN #8145-01-540-4437 – Storm Case iM2050, Black, Cubed Foam
NSN #8145-01-540-4450 – Storm Case iM2050, Black, Empty
Additional information
| Weight | 5.03 kg |
|---|---|
| Dimensions | 30 × 24.9 × 11.9 cm |
| Options | With Foam, No Foam, Padded Dividers |
| Colors | Black, Olive Drab (OD) Green, Yellow |
